PRODUCT CODE : ORI241210060

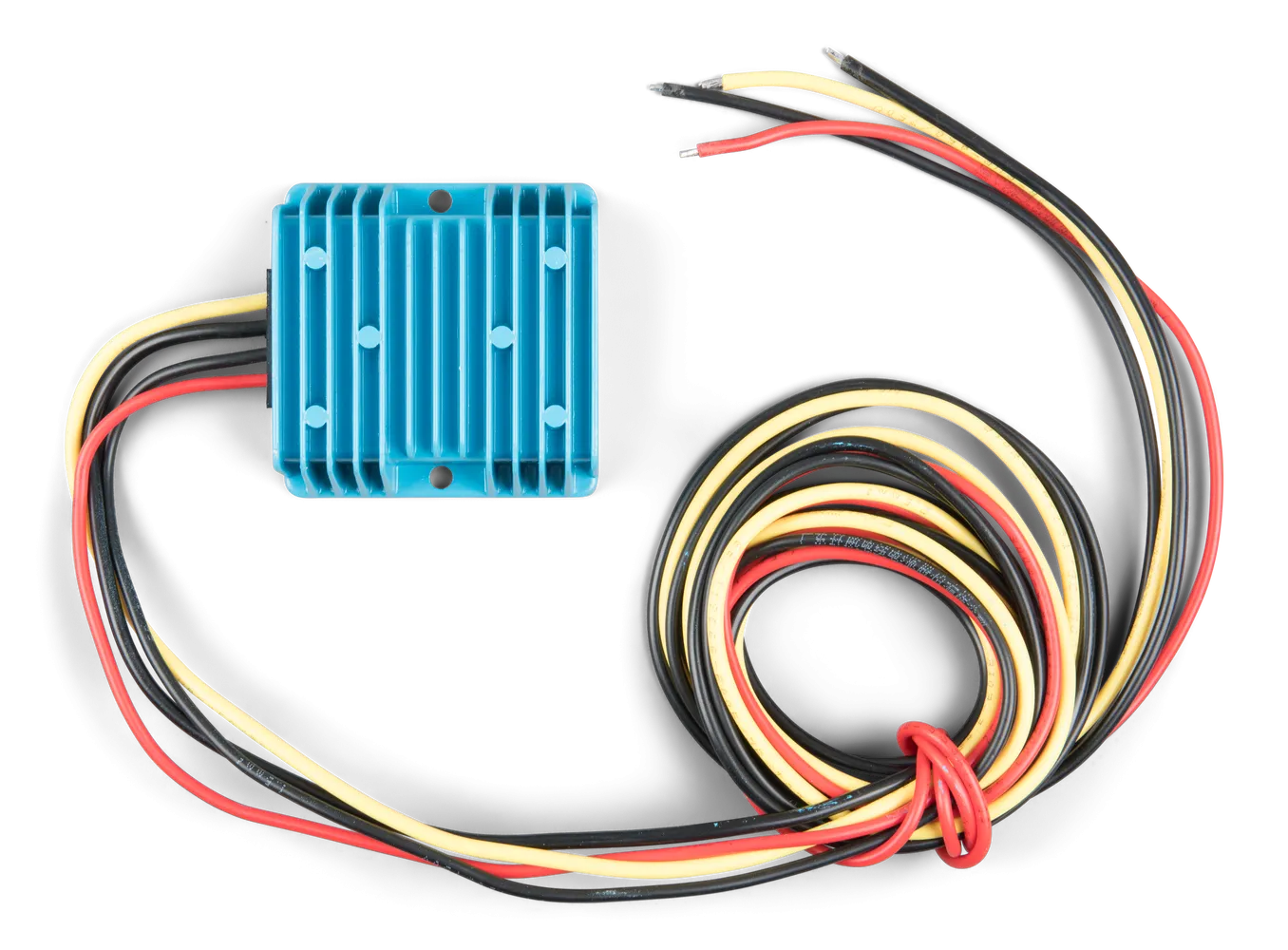

Victron Orion IP67 24/12-10A (120W) DC-DC Converter - Non Isolated

Completely Encapsulated: Waterproof, Shockproof And Ignition Protected

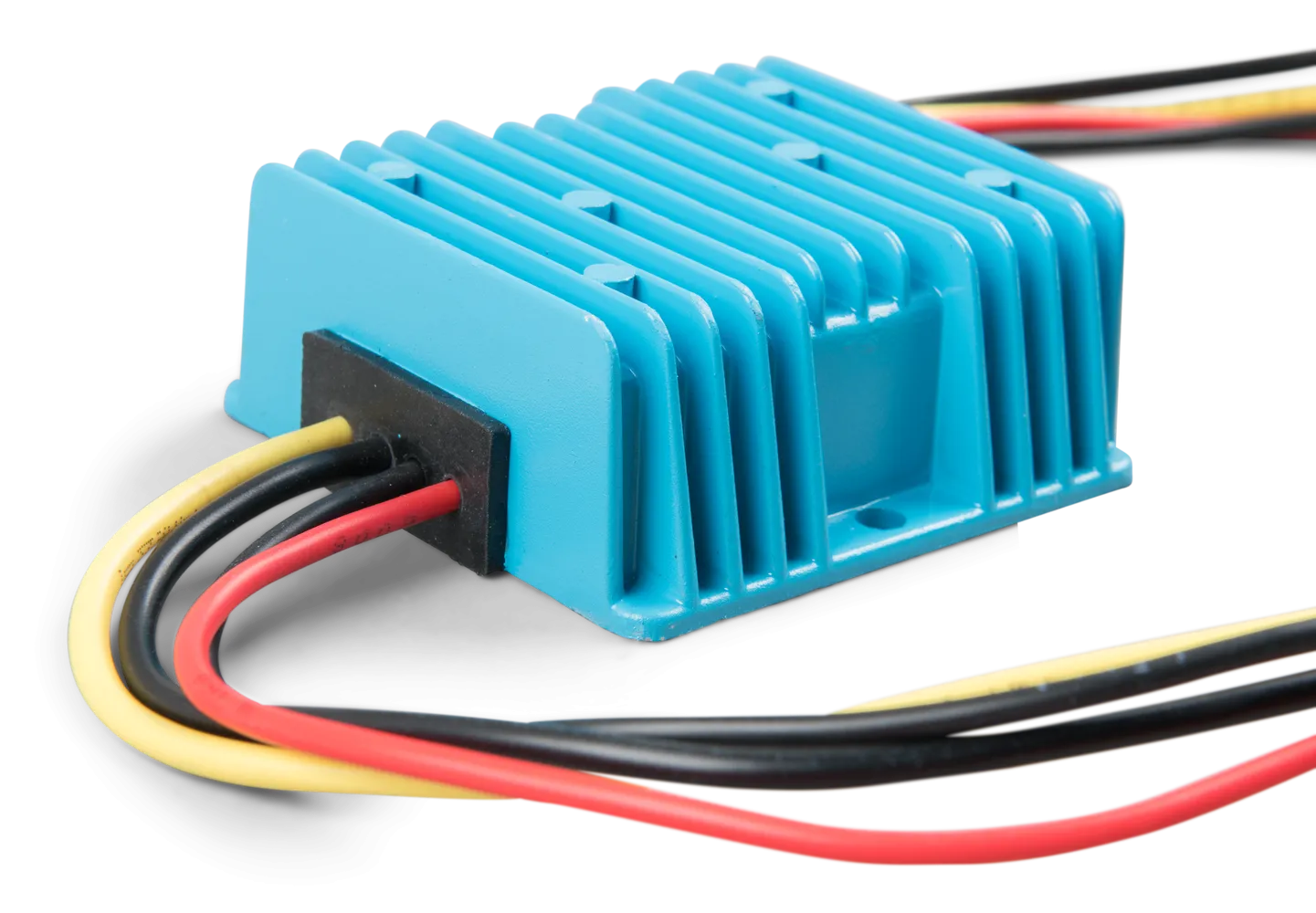

Water, oil or dirt will not damage the Orion IP67 DC-DC converter. The casing is made of cast aluminium and the electronics are moulded in resin.

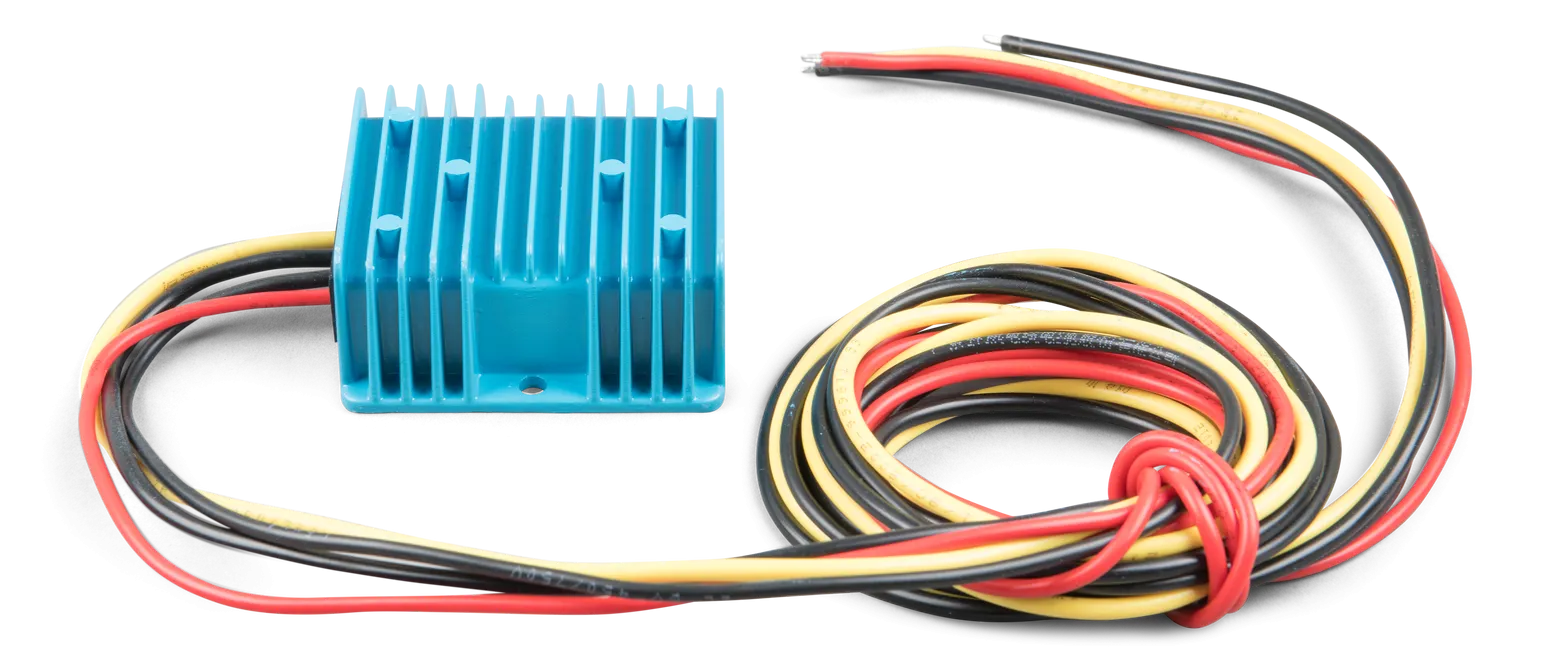

Extra-Long Input And Output Cables

Thanks to the cables 1.8 meters in length, intermediate cable connections to increase length, even more, will in most cases not be needed. This is an important reliability, increasing feature in an area where IP67 protection grade is needed.

Wide Input Voltage Range

With 15 to 40 Volts input range, a stable output is ensured during surges are sags due to other equipment connected to the same battery.

Protected Against Overheating

It can be used in a hot environment such as a machine room.

Enclosure:

Material & Colour: Aluminium (Blue RAL 5012)

Protection Category: IP67

Weight: 300g

Dimensions: 74mm (H) x 74mm (W) x 32mm (D)
